Crystal Filters for clearing generator's spectrum in the near-field zone FP2P4-2-02-100M-3k
Specifications
Model Number Centre Frequency Number of Poles Pass Bandwidth In-Band Ripple Insertion Loss Max level of input signal R
  MHz   dBkHz dB dB dB Ohm
FP2P4-2-02-100M-3k 100 2 3±1.5 0.1 2.5 +8 50

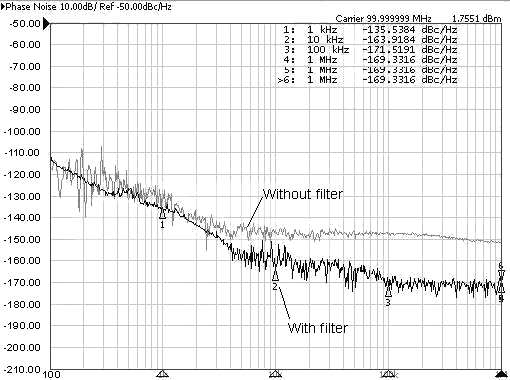

Example of Characteristics

FP2P4-2-02-100M-3k


Package Style Measuring Circuit
