Monolithic Crystal Filter
FP2P4-1-01-86M-36k (70,0 - 90,0 МHz)
(Fundamental mode)
Specifications
Model Number
Centre Frequency
Number of Poles
Pass Bandwidth
In-Band Ripple
Insertion Loss
Attenuation Bandwidth
Guaranteed Attenuation
Spurious
R/C
MHz
dB
kHz
dB
dB
dB
kHz
dB
kHz
dB
Ohm /pF
FP2P4-1-01-86M-36k
86.0*
6
3
±18*
1.5
3.0
60
±60
90
±10
85
50/1.5

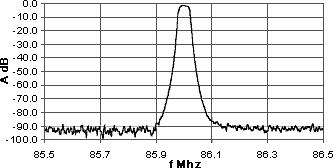

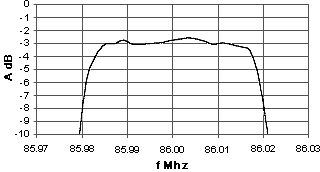

Example of Characteristics
FP2P4-1-01-86M-36k
FP2P4-1-01-86M-36k
Package Style
Measuring Circuit
ACCENT-М Scale 1:1
* Other values are available.
Please contact to our specialists.
