Monolithic Crystal Filter
FP2P6-1-06-21.4М-20k        (18.0 - 24.0 MHz)
(Fundamental mode)
Specifications
Model Number Centre Frequency Number of Poles Pass Bandwidth In-Band Ripple Insertion Loss Attenuation Bandwidth Guaranteed Attenuation Spurious R/C
  MHz   dBkHz dB dB dBkHz dBkHz dB kOhm /pF
FP2P6-1-06-21.4М-20k 21.4* 2 3±10* 0.5 1.0 40±100 50±10 25 1.8/1.2

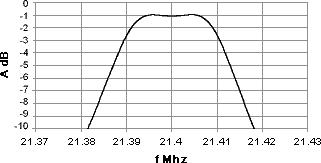

Example of Characteristics

FP2P6-1-06-21.4М-20k


FP2P6-1-06-21.4М-20k


Package Style Measuring Circuit


UM - 1     Scale 2:1





* Other values are available.
Please contact to our specialists.
