ETNA - Filters

Monolithic Crystal Filter
FP2P6-1-16-90.05M-24k (85.0 - 95.0 МHz)

(Fundamental mode)

Specifications

Model Number

Centre Frequency

Number of Poles

Pass Bandwidth

In-Band Ripple

Insertion Loss

Attenuation Bandwidth

Guaranteed Attenuation

Spurious

R/C

MHz

kHz

kOhm /pF

FP2P6-1-16-90.05M-24k

90,05*

±12*

1.0

1.5

±200

±10

0.35/1.2

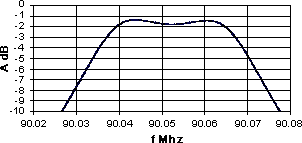

Example of Characteristics

FP2P6-1-16-90.05M-24k

Package Style

Measuring Circuit

UM - 1 Scale 2:1

* Other values are available.
Please contact to our specialists.
