Monolithic Crystal Filter
FP2P6-1-27-100M-24k        (95 - 105 МHz)
(Fundamental mode)
Specifications
Model Number Centre Frequency Number of Poles Pass Bandwidth In-Band Ripple Insertion Loss Attenuation Bandwidth Guaranteed Attenuation Spurious R/C
Ссв
  MHz   dBkHz dB dB dBkHz dBkHz dB kOhm /pF
pF
FP2P6-1-27-100M-24k 100* 2 3±12* 0.5 2.0 40±150 60±10 30 0.36/1.2

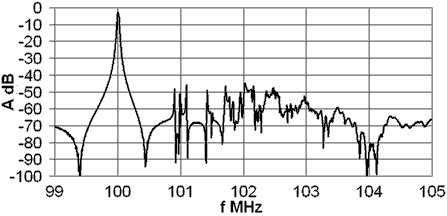

Example of Characteristics

FP2P6-1-27-100M-24k

Monolithic Crystal Filter: Example of Characteristics

FP2P6-1-27-100M-24k

Monolithic Crystal Filter: Example of Characteristics

Package Style Measuring Circuit



* Other values are available.
Please contact to our specialists.
