Monolithic Crystal Filter
FP2P6-2-07-57M-20k        (50.0 - 60.0 МHz)
(Fundamental mode)
Specifications
Model Number Centre Frequency Number of Poles Pass Bandwidth In-Band Ripple Insertion Loss Attenuation Bandwidth Guaranteed Attenuation Spurious R/C
Ссв
  MHz   dBkHz dB dB dBkHz dBkHz dB kOhm /pF
pF
FP2P6-2-07-57M-20k 57.0* 4 3±10* 1.5 2.0 60±57 80±10 60 0.9/1.2
3.7

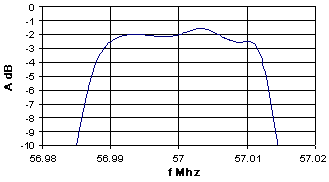

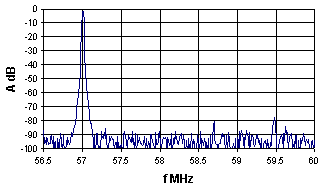

Example of Characteristics

FP2P6-2-07-57M-20k


FP2P6-2-07-57M-20k


Package Style Measuring Circuit


UM - 1     Scale 2:1





* Other values are available.
Please contact to our specialists.
