Monolithic Crystal Filter
FP2P6-2-09-26.945M-10k        (25.0 - 29.0 МHz)
(Fundamental mode)
Specifications
Model Number Centre Frequency Number of Poles Pass Bandwidth In-Band Ripple Insertion Loss Attenuation Bandwidth Guaranteed Attenuation Spurious R/C
  MHz   dBkHz dB dB dBkHz dBkHz dB kOhm /pF
FP2P6-2-09-26.945M-10k 26.945* 4 3±5* 1.0 1.0 60±34 90±10 60 0.5/4.0
15.4

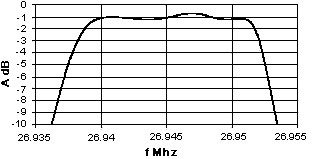

Example of Characteristics

FP2P6-2-09-26.945M-10k


FP2P6-2-09-26.945M-10k


Package Style Measuring Circuit


UM - 1     Scale 2:1



* Other values are available.
Please contact to our specialists.
